| ‧Your position: SPEC-METAL INC. > Products > > AN UNION / AN BULKHEAD UNION |
|
|
|
| 【
AN UNION / AN BULKHEAD UNION】
|
|
|
AN UNION--Fractional size
| Tube OD |
AN Tube
Flare
Size |
Catalog Number |
L |
B |
E |
F |
| 1/16 |
1/8 |
-ANU-01F-02 |
1.07 |
0.34 |
0.05 |
7/16 |
| 1/8 |
1/8
1/4 |
-ANU-02F-02
-ANU-02F-04 |
1.27
1.38 |
0.50 |
0.06
0.09 |
7/16
1/2 |
| 1/4 |
1/4 |
-ANU-04F-04 |
1.48 |
0.60 |
0.17
|
1/2
|
| 5/16 |
5/16 |
-ANU-01F-05 |
1.51 |
0.64 |
0.23 |
9/16 |
| 3/8 |
1/4
3/8
|
-ANU-02F-04
-ANU-02F-06
|
1.56 |
0.66
|
0.17
0.28
|
5/8
|
1/2
|
1/2
|
-ANU-08F-08
|
1.81 |
0.90 |
0.39 |
13/16
|
3/4
|
3/4
|
-ANU-04F-12
|
2.10 |
0.96
|
0.61 |
1 1/8 |
| 1 |
1 |
-ANU-16F-16 |
2.42 |
1.23 |
0.84 |
1 3/8 |
Dimensions are for reference and subject to change.
|
|
|
|

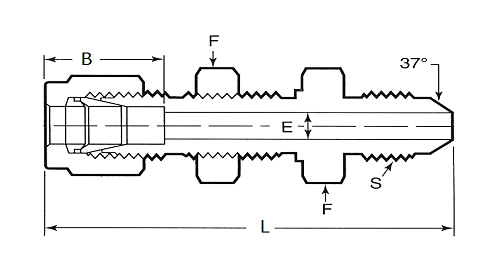

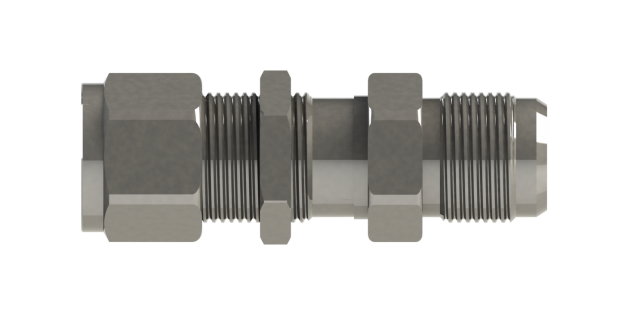

AN BULKHEAD UNION--Fractional size
| Tube OD |
AN Tube
Flare
Size |
Catalog Number |
L |
B |
E |
F |
Panel
Hole
Size |
Max
Panel
Thickness |
| 1/4 |
1/4 |
-ANUBH-04F-04 |
2.12 |
0.60 |
0.17
|
5/8
|
29/64 |
0.40 |
| 3/8 |
3/8
|
-ANUBH-02F-06
|
2.25 |
0.66
|
0.28
|
3/4
|
37/64 |
0.44 |
1/2
|
1/2
|
-ANUBH-08F-08
|
2.59 |
0.90 |
0.39 |
15/16
|
49/64 |
0.50 |
3/4
|
3/4
|
-ANUBH-04F-12
|
3.11 |
0.96
|
0.61 |
1 3/16 |
1 1/64 |
0.66 |
| 1 |
1 |
-ANUBH-04F-12 |
3.64 |
1.23 |
0.84 |
1 5/8 |
1 21/64 |
0.75 |
Dimensions are for reference and subject to change. |
