【 UNION TEE】

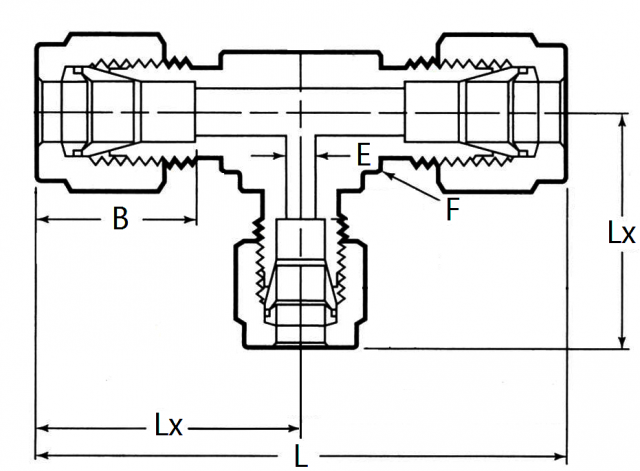

Fractional sizes Tube OD Catalog Number L Lx B E F 1/16 -UT-01F 1.40 0.70 0.34 0.05 3/8 1/8 -UT-02F 1.76 0.88 0.50 0.09 3/8 3/16 -UT-03F 1.92 0.96 0.54 0.12 7/16 1/4 -UT-04F 2.12 1.06 0.6 0.19 1/2 5/16 -UT-05F 2.34 1.17 0.64 0.25 5/8 3/8 -UT-06F 2.40 1.20 0.66 0.28 5/8 1/2 -UT-08F 2.84 1.42 0.90 0.41 13/16 5/8 -UT-10F 3.06 1.53 0.96 0.50 1 3/4 -UT-12F 3.14 1.57 0.96 0.62 11/16 7/8 -UT-14F 3.52 1.76 1.02 0.72 13/8 1 -UT-16F 3.86 1.96 1.23 0.88 13/8 Dimensions are for reference purposes only. Metric sizes Tube OD Catalog Number L Lx B E F (in.) 2 -UT-02M 44.7 22.3 12.9 1.7 3/8 3 -UT-03M 44.7 22.3 12.9 2.4 3/8 4 -UT-04M 50.8 25.4 13.7 2.4 1/2 6 -UT-06M 53.9 27.0 15.3 4.8 1/2 8 -UT-08M 59.7 29.9 16.2 6.4 5/8 10 -UT-10M 63 31.5 17.2 7.9 11/16 12 -UT-12M 72 36.0 22.8 9.5 13/16 14 -UT-14M 77.6 38.8 24.4 11.1 1 15 -UT-15M 77.6 38.8 24.4 11.9 1 16 -UT-16M 77.6 38.8 24.4 12.7 1 18 -UT-18M 79.6 39.8 24.4 15.1 11/16 20 -UT-20M 89.3 44.6 26.0 15.9 13/8 22 -UT-22M 89.3 44.6 26.0 18.3 13/8 25 -UT-25M 98.3 49.1 31.3 21.8 13/8 28 -UT-28M 128 64.0 36.6 21.8 41mm 30 -UT-30M 140 69.9 39.6 26.2 46mm 32 -UT-32M 145 72.3 42.0 28.6 46mm 38 -UT-38M 168 84 49.4 33.7 55mm 50 -UT-50M 211 106 65.0 45.2 23/4 Dimensions are for reference purposes only.  產 品 名 稱 : UNION TEE $ 未定   - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 商品說明 Fractional sizes Tube OD Catalog Number L Lx B E F 1/16 -UT-01F 1.40 0.70 0.34 0.05 3/8 1/8 -UT-02F 1.76 0.88 0.50 0.09 3/8 3/16 -UT-03F 1.92 0.96 0.54 0.12 7/16 1/4 -UT-04F 2.12 1.06 0.6 0.19 1/2 5/16 -UT-05F 2.34 1.17 0.64 0.25 5/8 3/8 -UT-06F 2.40 1.20 0.66 0.28 5/8 1/2 -UT-08F 2.84 1.42 0.90 0.41 13/16 5/8 -UT-10F 3.06 1.53 0.96 0.50 1 3/4 -UT-12F 3.14 1.57 0.96 0.62 11/16 7/8 -UT-14F 3.52 1.76 1.02 0.72 13/8 1 -UT-16F 3.86 1.96 1.23 0.88 13/8 Dimensions are for reference purposes only. 其他說明 Metric sizes Tube OD Catalog Number L Lx B E F (in.) 2 -UT-02M 44.7 22.3 12.9 1.7 3/8 3 -UT-03M 44.7 22.3 12.9 2.4 3/8 4 -UT-04M 50.8 25.4 13.7 2.4 1/2 6 -UT-06M 53.9 27.0 15.3 4.8 1/2 8 -UT-08M 59.7 29.9 16.2 6.4 5/8 10 -UT-10M 63 31.5 17.2 7.9 11/16 12 -UT-12M 72 36.0 22.8 9.5 13/16 14 -UT-14M 77.6 38.8 24.4 11.1 1 15 -UT-15M 77.6 38.8 24.4 11.9 1 16 -UT-16M 77.6 38.8 24.4 12.7 1 18 -UT-18M 79.6 39.8 24.4 15.1 11/16 20 -UT-20M 89.3 44.6 26.0 15.9 13/8 22 -UT-22M 89.3 44.6 26.0 18.3 13/8 25 -UT-25M 98.3 49.1 31.3 21.8 13/8 28 -UT-28M 128 64.0 36.6 21.8 41mm 30 -UT-30M 140 69.9 39.6 26.2 46mm 32 -UT-32M 145 72.3 42.0 28.6 46mm 38 -UT-38M 168 84 49.4 33.7 55mm 50 -UT-50M 211 106 65.0 45.2 23/4 Dimensions are for reference purposes only. 備註說明
