【 UNION ELBOW】

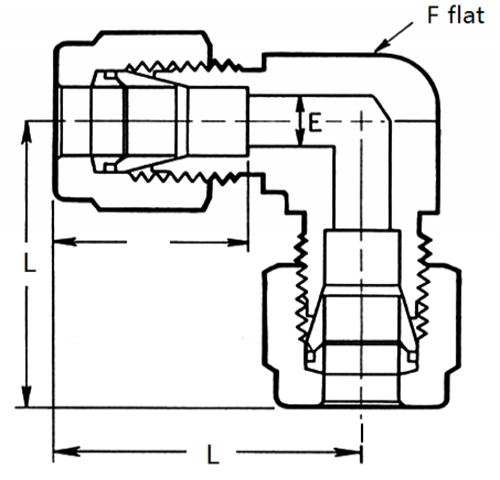

Fractional sizes Tube OD Catalog Number L B E F 1/16 -UE-01F 0.70 0.34 0.05 3/8 1/8 -UE-02F 0.88 0.50 0.09 3/8 3/16 -UE-03F 1.00 0.54 0.12 1/2 1/4 -UE-04F 1.06 0.60 0.19 1/2 5/16 -UE-05F 1.13 0.64 0.25 9/16 3/8 -UE-06F 1.20 0.66 0.28 5/8 1/2 -UE-08F 1.42 0.90 0.41 13/16 5/8 -UE-10F 1.50 0.96 0.50 15/16 3/4 -UE-12F 1.57 0.96 0.62 11/16 7/8 -UE-14F 1.76 1.02 0.72 13/8 1 -UE-16F 1.93 1.23 0.88 13/8 Dimensions are for reference purposes only. Metric sizes Tube OD Catalog Number L B E F (in.) 3 -UE-03M 22.3 12.9 2.4 3/8 4 -UE-04M 25.4 13.7 2.4 1/2 6 -UE-06M 27.0 15.3 4.8 1/2 8 -UE-08M 28.8 16.2 6.4 9/16 10 -UE-10M 31.5 17.2 7.9 11/16 12 -UE-12M 36.0 22.8 9.5 13/16 14 -UE-14M 38.0 24.4 11.1 15/16 15 -UE-15M 38.0 24.4 11.9 15/16 16 -UE-16M 38.0 24.4 15.1 15/16 18 -UE-18M 39.8 24.4 15.1 11/16 20 -UE-20M 44.6 26.0 15.9 13/8 22 -UE-22M 44.6 26.0 18.3 13/8 25 -UE-25M 49.1 31.3 21.8 13/8 28 -UE-28M 64.0 36.6 21.8 41mm 30 -UE-30M 69.9 39.6 26.2 46mm 32 -UE-32M 72.3 42 28.6 46mm 38 -UE-38M 84 49.4 33.7 55mm 50 -UE-50M 106 65 45.2 23/4 Dimensions are for reference purposes only.  產 品 名 稱 : UNION ELBOW $ 未定   - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 商品說明 Fractional sizes Tube OD Catalog Number L B E F 1/16 -UE-01F 0.70 0.34 0.05 3/8 1/8 -UE-02F 0.88 0.50 0.09 3/8 3/16 -UE-03F 1.00 0.54 0.12 1/2 1/4 -UE-04F 1.06 0.60 0.19 1/2 5/16 -UE-05F 1.13 0.64 0.25 9/16 3/8 -UE-06F 1.20 0.66 0.28 5/8 1/2 -UE-08F 1.42 0.90 0.41 13/16 5/8 -UE-10F 1.50 0.96 0.50 15/16 3/4 -UE-12F 1.57 0.96 0.62 11/16 7/8 -UE-14F 1.76 1.02 0.72 13/8 1 -UE-16F 1.93 1.23 0.88 13/8 Dimensions are for reference purposes only. 其他說明 Metric sizes Tube OD Catalog Number L B E F (in.) 3 -UE-03M 22.3 12.9 2.4 3/8 4 -UE-04M 25.4 13.7 2.4 1/2 6 -UE-06M 27.0 15.3 4.8 1/2 8 -UE-08M 28.8 16.2 6.4 9/16 10 -UE-10M 31.5 17.2 7.9 11/16 12 -UE-12M 36.0 22.8 9.5 13/16 14 -UE-14M 38.0 24.4 11.1 15/16 15 -UE-15M 38.0 24.4 11.9 15/16 16 -UE-16M 38.0 24.4 15.1 15/16 18 -UE-18M 39.8 24.4 15.1 11/16 20 -UE-20M 44.6 26.0 15.9 13/8 22 -UE-22M 44.6 26.0 18.3 13/8 25 -UE-25M 49.1 31.3 21.8 13/8 28 -UE-28M 64.0 36.6 21.8 41mm 30 -UE-30M 69.9 39.6 26.2 46mm 32 -UE-32M 72.3 42 28.6 46mm 38 -UE-38M 84 49.4 33.7 55mm 50 -UE-50M 106 65 45.2 23/4 Dimensions are for reference purposes only. 備註說明
