【 UNION – BULKHEAD】

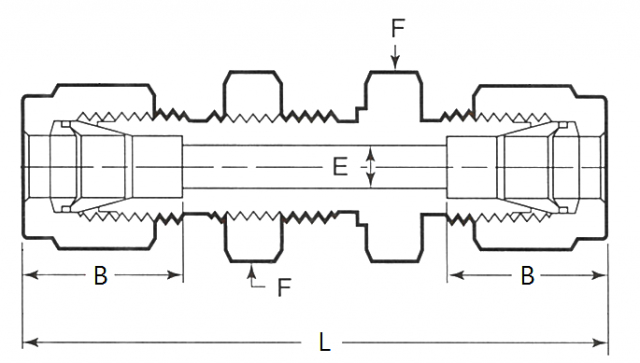

Fractional Size Tube OD Catalog Number L B E F Panel Hole Size Max Panel Thickness 1/16 -UNBH-01F 1.24 0.34 0.05 5/16 13/64 0.12 1/8 -UNBH-01F 2.02 0.50 0.09 1/2 21/64 0.50 3/16 -UNBH-03F 2.11 0.54 0.12 9/16 25/64 0.50 1/4 -UNBH-04F 2.27 0.60 0.19 5/8 29/64 0.40 5/16 -UNBH-05F 2.39 0.64 0.25 11/16 33/64 0.44 3/8 -UNBH-06F 2.45 0.66 0.28 3/4 37/64 0.44 1/2 -UNBH-08F 2.80 0.90 0.41 15/16 49/64 0.50 5/8 -UNBH-10F 2.86 0.96 0.50 11/16 57/64 0.50 3/4 -UNBH-12F 3.11 0.96 0.62 13/16 11/64 0.66 1 -UNBH-16F 3.77 1.23 0.88 15/8 121/64 0.75 Dimensions are for reference and subject to change. Metric size Tube OD Catalog Number L B E F Panel Hole Size Max Panel Thickness 3 -UNBH-03M 51.3 12.9 2.4 14 8.3 12.7 6 -UNBH-06M 57.7 15.3 4.8 16 11.5 10.2 8 -UNBH-08M 61.0 16.2 6.4 18 13.1 11.2 10 -UNBH-10M 63.7 17.2 7.9 22 19.5 12.7 14 -UNBH-14M 72.5 22.8 11.1 27 22.5 12.7 15 -UNBH-15M 72.5 24.4 11.9 27 22.8 12.7 16 -UNBH-16M 72.5 24.4 12.7 27 22.8 16.8 18 -UNBH-18M 78.9 24.4 15.1 30 26.0 19.0 20 -UNBH-20M 84.5 26.0 15.9 35 29.0 19.0 25 -UNBH-25M 96.0 31.3 21.8 41 34.0 19.0 30 -UNBH-30M 124 39.6 26.2 50 40.5 19.0 32 -UNBH-32M 128 42.0 28.6 50 42.5 19.0 38 -UNBH-38M 145 49.4 33.7 60 50.5 19.0 Dimensions are for reference and subject to change.  產 品 名 稱 : UNION – BULKHEAD $ 未定   - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 商品說明 Fractional Size Tube OD Catalog Number L B E F Panel Hole Size Max Panel Thickness 1/16 -UNBH-01F 1.24 0.34 0.05 5/16 13/64 0.12 1/8 -UNBH-01F 2.02 0.50 0.09 1/2 21/64 0.50 3/16 -UNBH-03F 2.11 0.54 0.12 9/16 25/64 0.50 1/4 -UNBH-04F 2.27 0.60 0.19 5/8 29/64 0.40 5/16 -UNBH-05F 2.39 0.64 0.25 11/16 33/64 0.44 3/8 -UNBH-06F 2.45 0.66 0.28 3/4 37/64 0.44 1/2 -UNBH-08F 2.80 0.90 0.41 15/16 49/64 0.50 5/8 -UNBH-10F 2.86 0.96 0.50 11/16 57/64 0.50 3/4 -UNBH-12F 3.11 0.96 0.62 13/16 11/64 0.66 1 -UNBH-16F 3.77 1.23 0.88 15/8 121/64 0.75 Dimensions are for reference and subject to change. 其他說明 Metric size Tube OD Catalog Number L B E F Panel Hole Size Max Panel Thickness 3 -UNBH-03M 51.3 12.9 2.4 14 8.3 12.7 6 -UNBH-06M 57.7 15.3 4.8 16 11.5 10.2 8 -UNBH-08M 61.0 16.2 6.4 18 13.1 11.2 10 -UNBH-10M 63.7 17.2 7.9 22 19.5 12.7 14 -UNBH-14M 72.5 22.8 11.1 27 22.5 12.7 15 -UNBH-15M 72.5 24.4 11.9 27 22.8 12.7 16 -UNBH-16M 72.5 24.4 12.7 27 22.8 16.8 18 -UNBH-18M 78.9 24.4 15.1 30 26.0 19.0 20 -UNBH-20M 84.5 26.0 15.9 35 29.0 19.0 25 -UNBH-25M 96.0 31.3 21.8 41 34.0 19.0 30 -UNBH-30M 124 39.6 26.2 50 40.5 19.0 32 -UNBH-32M 128 42.0 28.6 50 42.5 19.0 38 -UNBH-38M 145 49.4 33.7 60 50.5 19.0 Dimensions are for reference and subject to change. 備註說明
