【 UNION】
UNION,Tube fitting, Tube

Fractional sizes

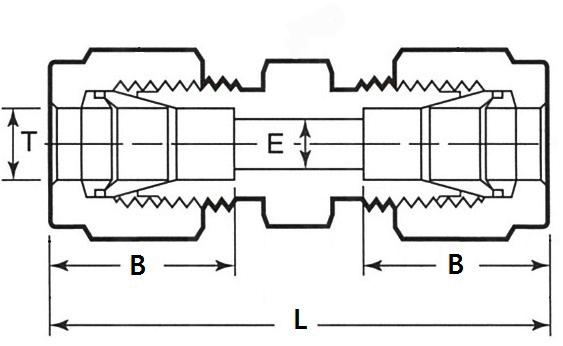

Tube OD Catalog Number L B E
1/16
-UN-01F
0.99 0.34 0.05
1/8
-UN-02F
1.40 0.50 0.09
3/16
-UN-03F
1.47 0.54 0.12
1/4
-UN-04F
1.61 0.60 0.19
5/16
-UN-05F
1.69 0.64 0.25
3/8
-UN-06F
1.77 0.66 0.28
1/2
-UN-08F
2.02 0.90 0.41
5/8
-UN-10F
2.05 0.96 0.50
3/4
-UN-12F
2.11 0.96 0.62
7/8
-UN-14F
2.17 1.02 0.72
1 -UN-16F 2.55 1.23 0.88
Dimensions are for reference purposes only.
UNION,Tube fitting, Tube

Metric sizes

Tube OD Catalog Number L B E
2 -UN-02M
35.6 12.9 1.7
3 -UN-03M
35.3 12.9 2.4
4 -UN-04M 37.3 13.7 2.4
6 -UN-06M
41.0 15.3 4.8
8 -UN-08M
43.2 16.2 6.4
10 -UN-10M
46.2 17.2 7.9
12 -UN-12M
51.2 22.8 9.5
14 -UN-14M
52.0 24.4 11.1
15 -UN-15M
52.0 24.4 11.9
16 -UN-16M
52.0 24.4 12.7
18 -UN-18M
53.5 24.4 15.1
20 -UN-20M
55.0 26.0 15.9
22 -UN-22M
55.0 26.0 18.3
25 -UN-25M
65.0 31.3 21.8
28 -UN-28M
85.0 36.6 21.8
30 -UN-30M
92.7 39.6 26.2
32 -UN-32M
97.3 42.0 28.6
38 -UN-38M
114 49.4 33.7
50 -UN-50M
146 65.0 45.2
Dimensions are for reference purposes only.
