【 FEMALE RUN TEE 】

FEMALE RUN TEE ,Tube fitting, Tube

Fractional sizes

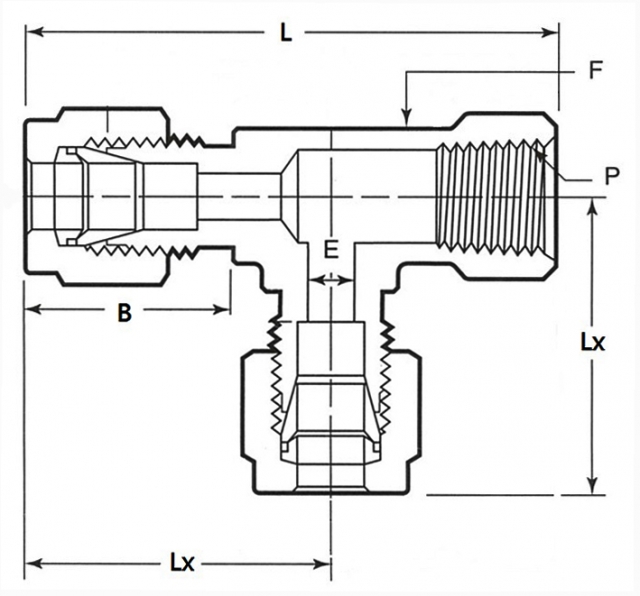

Tube OD P-NPT Size Catalog Number L Lx B E F (in.)
1/8
1/8
-FRT-02F-02N
1.72 0.97 0.50 0.09 1/2
1/4
1/8
1/4 -FRT-04F-02N
-FRT-04F-04N
1.81
2.05 1.06
1.17 0.60 0.19 1/2
11/16
3/8
1/4
-FRT-06F-04N
2.11 1.23 0.66 0.28 11/16
1/2
3/8
1/2
-FRT-08F-06N
-FRT-08F-08N
2.30
2.69 1.42
1.57 0.90 0.41 13/16
1 1/16
3/4
3/4
-FRT-12F-12N
3.01 1.76 0.96 0.62 1 3/8
1
3/4
1
-FRT-16F-12N
-FRT-16F-16N
3.18
3.61 1.93
2.11 1.23 0.88 1 3/8
1 11/16

Dimensions are for reference purposes only.

FEMALE RUN TEE ,Tube fitting, Tube

Metric sizes

Tube OD	P-NPT Size (in.)	Catalog Number	L	B	E	F (in.)	H
6	1/8 1/4	-FRT-06M-02N -FRT-06M-04N	45.8 50.3	27.0	15.3	4.8	1/2
8	1/8 1/4	-FRT-08M-02N -FRT-08M-04N	55.3	29.9	16.2	6.4	5/8
10	1/4	-FRT-10M-04N	55.9	33.5	17.2	7.9	13/16
12	1/4 3/8 1/2	-FRT-12M-04N -FRT-12M-06N -FRT-12M-08N	64.2 69.0	36.0	22.8	7.1 9.5	13/16
16	1/2	-FRT-16M-08N	73.1	38.0	24.4	11.9	15/16

Dimensions are for reference purposes only.
