【 MALE ELBOW 45°】
MALE ELBOW 45°,Tube fitting, Tube MALE ELBOW 45°,Tube fitting, Tube

Fractional sizes

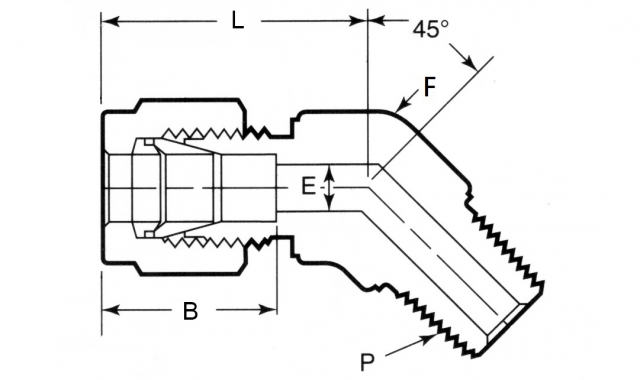

Tube OD P-NPT Size Catalog Number L B E F
1/4 1/8
1/4
-ME45-04F-02N
-ME45-04F-04N
0.97 0.60 0.19 1/2
3/8 1/8
1/4
3/8
-ME45-06F-02N
-ME45-06F-04N
-ME45-06F-06N
1.10
1.10
1.15
0.66 0.19
0.28
0.28
5/8
5/8
13/16
1/2 3/8
1/2
-ME45-08F-06N
-ME45-08F-08N
1.26 0.90 0.38
0.41
13/16
3/4 3/4 -ME45-12F-12N
1.33 0.96 0.62 11/16
1 1 -ME45-16F-16N
1.59 1.23 0.88 13/8
Dimensions are for reference purposes only.
 產 品 名 稱 : MALE ELBOW 45°
$ 未定
商品說明

Fractional sizes

Tube OD P-NPT Size Catalog Number L B E F
1/4 1/8
1/4
-ME45-04F-02N
-ME45-04F-04N
0.97 0.60 0.19 1/2
3/8 1/8
1/4
3/8
-ME45-06F-02N
-ME45-06F-04N
-ME45-06F-06N
1.10
1.10
1.15
0.66 0.19
0.28
0.28
5/8
5/8
13/16
1/2 3/8
1/2
-ME45-08F-06N
-ME45-08F-08N
1.26 0.90 0.38
0.41
13/16
3/4 3/4 -ME45-12F-12N
1.33 0.96 0.62 11/16
1 1 -ME45-16F-16N
1.59 1.23 0.88 13/8
Dimensions are for reference purposes only.
