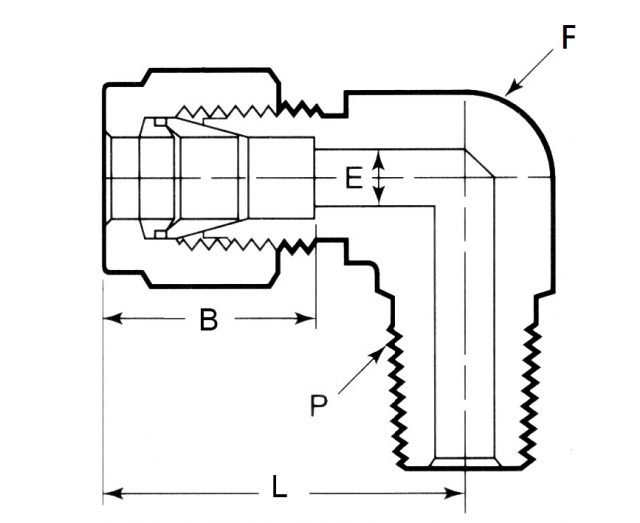

【 MALE ELBOW 90°】
MALE ELBOW 90°,Tube fitting, Tube

Fractional size

Tube OD P-NPT Size Catalog Number L B E F
1/16 1/16
1/8		 -ME-01F-01N
-ME-01F-02N		 0.75 0.34 0.05 7/16
1/8 1/16
1/8
1/4		 -ME-02F-01N
-ME-02F-02N
-ME-02F-04N
0.93
0.93
0.97		 0.50 0.09 7/16
7/16
1/2
3/16 1/8
1/4		 -ME-03F-02N
-ME-03F-04N
 1.00 0.54 0.12 1/2
1/4 1/16
1/8
1/4
3/8
1/2		 -ME-04F-01N
-ME-04F-02N
-ME-04F-04N
-ME-04F-06N
-ME-04F-08N		 1.06
1.06
1.06
1.17
1.25		 0.60 0.12
0.19
0.19
0.19
0.19		 1/2
1/2
1/2
11/16
13/16
5/16 1/8
1/4
3/8		 -ME-05F-02N
-ME-05F-04N
-ME-05F-06N		 1.13
1.13
1.20		 0.64 0.19
0.25
0.25		 9/16
9/16
11/16
3/8 1/8
1/4
3/8
1/2
3/4		 -ME-06F-02N
-ME-06F-04N
-ME-06F-06N
-ME-06F-08N
-ME-06F-12N
 1.20
1.20
1.23
1.31
1.46		 0.66 0.19
0.28
0.28
0.28
0.28		 5/8
5/8
11/16
13/16
11/16
1/2 1/4
3/8
1/2
3/4		 -ME-08F-04N
-ME-08F-06N
-ME-08F-08N
-ME-08F-12N
 1.42
1.42
1.42
1.57		 0.90 0.28
0.38
0.41
0.41		 13/16
13/16
13/16
11/16
5/8 3/8
1/2
3/4		 -ME-10F-06N
-ME-10F-08N
-ME-10F-12N
 1.50
1.50
1.57		 0.96 0.38
0.47
0.50		 15/16
15/16
11/16
3/4 1/2
3/4		 -ME-12F-08N
-ME-12F-12N
 1.57 0.96 0.47
0.62		 11/16
7/8 3/4 -ME-14F-12N 1.76 1.02 0.62 13/8
1 3/4
1		 -ME-16F-12N
-ME-16F-16N
 1.93 1.23 0.62
0.88		 13/8
Dimensions are for reference and subject to change.
MALE ELBOW 90°,Tube fitting, Tube

Metric size

Tube OD P-NPT Size (in.) Catalog Number L B E F (in.)
3 1/8
1/4		 -ME-03M-02N
-ME-03M-04N
 23.6
24.6		 12.9 2.4 7/16
1/2
4 1/8
1/4		 -ME-04M-02N
-ME-04M-04N
 25.4 13.7 2.4 1/2
6 1/8
1/4
3/8
1/2		 -ME-06M-02N
-ME-06M-04N
-ME-06M-06N
-ME-06M-08N
 27.0
27.0
29.8
31.8		 15.3 4.8 1/2
1/2
11/16
13/16
8 1/8
1/4
3/8
1/2		 -ME-08M-02N
-ME-08M-04N
-ME-08M-06N
-ME-08M-08N
 28.8
28.8
30.6
32.6		 16.2 4.8
6.4
6.4
6.4		 9/16
9/16
11/16
13/16
10 1/8
1/4
3/8
1/2		 -ME-10M-02N
-ME-10M-04N
-ME-10M-06N
-ME-10M-08N
 31.5
31.5
31.5
33.5		 17.2 4.8
7.1
7.9
7.9		 11/16
11/16
11/16
13/16
12 1/4
3/8
1/2
3/4		 -ME-12M-04N
-ME-12M-06N
-ME-12M-08N
-ME-12M-12N
 36.0
36.0
36.0
39.8		 22.8 7.1
9.5
9.5
9.5		 13/16
13/16
13/16
11/16
15 1/2 -ME-15M-08N
 38.0 24.4 11.9 15/16
16 3/8
1/2
3/4		 -ME-16M-06N
-ME-16M-08N
-ME-16M-12N
 38.0
38.0
39.8		 24.4 9.5
11.9
12.7		 15/16
15/16
11/16
18 1/2
3/4		 -ME-18M-08N
-ME-18M-12N
 39.8 24.4 11.9
15.1		 11/16
20 1/2
3/4		 -ME-20M-08N
-ME-20M-12N
 44.6 26.0 11.9
15.9		 11/16
22 3/4
1		 -ME-22M-12N
-ME-22M-16N
 44.6 26.0 15.9
18.3		 13/8
25 3/4
1		 -ME-25M-12N
-ME-25M-16N
 49.1 31.3 15.9
21.8		 13/8
Dimensions are for reference and subject to change.
