【 MALE CONNECTOR 】
MALE CONNECTOR ,Tube fitting, Tube

Fractional sizes

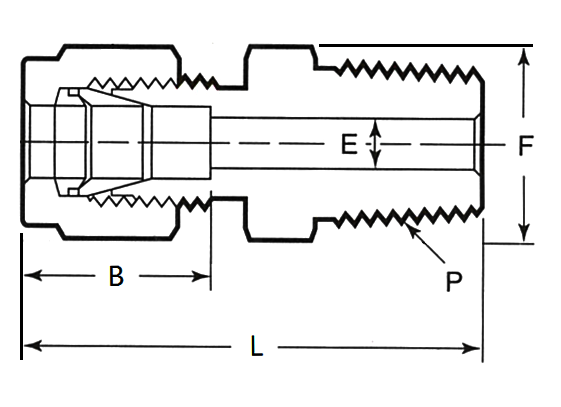

Tube OD P-NPT Size Catalog Number L B E F
1/16 1/16
1/8
1/4		 -MC-01F-01N
-MC-01F-02N
-MC-01F-04N		 0.94
1.03
1.22		 0.34
 0.05 5/16
7/16
9/16
1/8 1/16
1/8
1/4
3/8
1/2
 -MC-02F-01N
-MC-02F-02N
-MC-02F-04N
-MC-02F-06N
-MC-02F-08N		 1.17
1.20
1.40
1.41
1.66		 0.50 0.09 7/16
7/16
9/16
11/16
7/8
3/16 1/8
1/4		 -MC-03F-02N
-MC-03F-04N		 1.23
1.43
 0.54 0.12 7/16
9/16
1/4 1/16
1/8
1/4
3/8
1/2
3/4		 -MC-04F-01N
-MC-04F-02N
-MC-04F-04N
-MC-04F-06N
-MC-04F-08N
-MC-04F-12N
 1.29
1.29
1.49
1.51
1.76
1.82
 0.60
 0.12
0.19
0.19
0.19
0.19
0.19		 1/2
1/2
9/16
11/16
7/8
1 1/16
5/16 1/8
1/4
3/8		 -MC-05F-02N
-MC-05F-04N
-MC-05F-06N		 1.34
1.52
1.54		 0.64 0.19
0.25
0.25		 9/16
9/16
11/16
3/8 1/8
1/4
3/8
1/2
3/4
1		 -MC-06F-02N
-MC-06F-04N
-MC-06F-06N
-MC-06F-08N
-MC-06F-12N
-MC-06F-16N		 1.39
1.57
1.57
1.82
1.88
2.14		 0.66 0.19
0.28
0.28
0.28
0.28
0.28
 5/8
5/8
11/16
7/8
1 1/16
1 3/8
1/2
 1/8
1/4
3/8
1/2
3/4
1		 -MC-08F-02N
-MC-08F-04N
-MC-08F-06N
-MC-08F-08N
-MC-08F-12N
-MC-08F-16N		 1.53
1.71
1.71
1.93
1.99
2.25		 0.90 0.19
0.28
0.38
0.41
0.41
0.41
 13/16
13/16
13/16
7/8
1 1/16
1 3/8
5/8 1/4
3/8
1/2
3/4		 -MC-10F-04N
-MC-10F-06N
-MC-10F-08N
-MC-10F-12N		 1.74
1.74
1.93
1.99
 0.96 0.28
0.38
0.47
0.50		 15/16
15/16
15/16
1 1/16
3/4 3/8
1/2
3/4
1		 -MC-12F-06N
-MC-12F-08N
-MC-12F-12N
-MC-12F-16N		 1.80
1.99
1.99
2.25		 0.96 0.41
0.47
0.62
0.62		 1 1/16
1 1/16
1 1/16
1 3/8
7/8 1/2
3/4
1
 -MC-14F-08N
-MC-14F-12N
-MC-14F-16N		 1.99
1.99
2.25		 1.02 0.47
0.62
0.72		 1 3/16
1 3/16
1 3/8
1 1/2
3/4
1
 -MC-16F-08N
-MC-16F-12N
-MC-16F-16N
 2.26
2.26
2.45		 1.23 0.47
0.62
0.88		 1 3/8
Dimensions are for reference purposes only.
